If you’re a passionate cyclist who loves taking care of your own bike maintenance, you may find yourself faced with the task of fitting threadless forks. While it may seem like a daunting task at first, with the right tools and knowledge, you can successfully complete this process and enjoy the benefits of improved performance and handling.
In this guide, we will take you through the step-by-step process of fitting threadless forks to your bike. We will cover everything from removing the old fork to installing the new one, ensuring that you have all the necessary information to tackle this task with confidence.
The first step in fitting threadless forks is removing the old fork. Start by loosening the stem bolt on the stem cap, then remove the stem cap and any spacers that are above the stem. Next, loosen the stem bolts on the stem and carefully slide the stem off the fork steerer. Once the stem is removed, you can simply slide the old fork out of the head tube.
Now that you have successfully removed the old fork, it’s time to install the new one. Begin by inserting the new fork into the head tube, making sure that it is properly aligned. Secure the new fork in place by tightening the stem bolts on the stem. Ensure that the stem bolts are tightened evenly to avoid any damage to the fork or the stem.
Fitting Threadless Forks: A Step-by-Step Guide
Threadless forks are a popular choice among cyclists due to their lightweight design and improved steering responsiveness. However, fitting threadless forks can be a bit tricky if you’re not familiar with the process. In this step-by-step guide, we will walk you through the process of fitting threadless forks onto your bike.
Tools and Materials Needed:
- Threadless fork
- Headset
- Stem
- Allen wrench set
- Grease
Step 1: Remove the Old Fork
Start by loosening the stem bolt on your bike’s headset using an appropriate-sized Allen wrench. Once the stem bolt is loose, remove the stem and handlebars from the fork steerer tube. Next, remove the headset bearings from the headtube.
Step 2: Prepare the New Fork
Apply a thin layer of grease to the inside of the headtube and the fork steerer tube. This will help prevent corrosion and ensure a smooth installation. Insert the fork steerer tube into the headtube and align it properly.
Step 3: Install the Headset Bearings
Place the headset bearings onto the top and bottom of the fork steerer tube. Make sure the bearings fit snugly and are aligned correctly. Use a headset press tool to press the bearings into place. Be careful not to damage the bearings during the installation process.
Step 4: Secure the Stem
Slide the stem onto the fork steerer tube and align it with the front wheel. Tighten the stem bolt using an Allen wrench, making sure it is secure but not overly tight.
Step 5: Test and Adjust
Before taking your bike for a ride, double-check all the fittings and adjustments. Make sure the headset is tight and the stem is secure. Test the steering by turning the handlebars from side to side. If everything feels tight and responsive, your threadless fork is ready to go.
By following these step-by-step instructions, you can successfully fit threadless forks onto your bike. Remember to take your time and pay attention to all the details to ensure a safe and proper installation.
Preparing Your Tools
Before you start fitting threadless forks, make sure you have all the necessary tools. Here are the tools you will need:

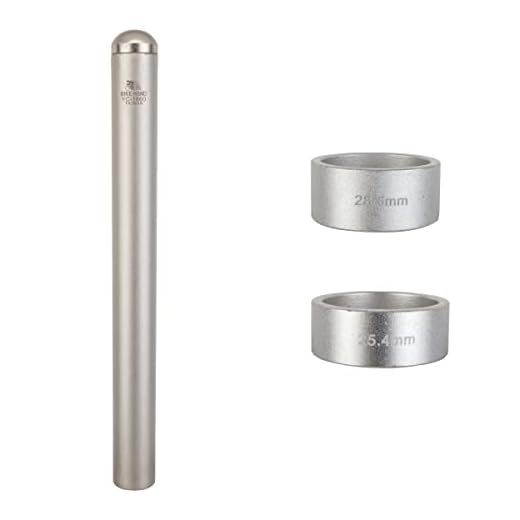

1. Fork crown race installer: This tool is used to install the crown race onto the fork. It ensures that the crown race is properly aligned and securely fitted.
2. Headset press or headset press tool: This tool is used to press the headset cups into the frame. It ensures that the headset cups are properly seated and aligned.
3. Cutting guide or hacksaw guide: This tool is used to cut the steerer tube to the desired length. It ensures a straight and clean cut.
4. Hacksaw: This tool is used to cut the steerer tube. Make sure you have a blade suitable for cutting metal.
5. File: This tool is used to smooth out any rough edges or burrs that may be present after cutting the steerer tube.
6. Torque wrench: This tool is used to tighten the stem bolts to the manufacturer’s recommended torque. It ensures that the stem is securely fastened.
7. Hex wrenches: You will need hex wrenches of various sizes to tighten the bolts and secure the stem, handlebars, and other components.
8. Grease: Apply a small amount of grease to the crown race, headset cups, and bolts to prevent them from seizing and ensure smooth installation.
Having these tools ready and easily accessible will make the process of fitting threadless forks much easier and efficient.
Removing the Old Fork
Before you can fit a threadless fork, you need to remove the old fork from your bike. Follow these steps to safely remove the old fork:
- Prepare your workspace: Find a flat surface to work on and gather the necessary tools, including an adjustable wrench, a headset wrench, and a hex key set.
- Loosen the stem bolts: Use the adjustable wrench or hex key to loosen the stem bolts on the handlebars. This will allow you to remove the handlebars from the old fork.
- Remove the handlebars: Carefully pull the handlebars away from the old fork, sliding them out of the stem. Set the handlebars aside in a safe place.
- Remove the front brake: Use the appropriate tools to detach the front brake from the fork. This may involve loosening bolts or unhooking the brake cable.
- Remove the front wheel: If the old fork is still attached to the front wheel, remove the wheel by loosening the wheel nuts or quick-release skewer.
- Remove the fork: Use the headset wrench to remove the headset cap and any additional spacers on top of the old fork. Then, carefully slide the old fork out of the head tube.
Once you have successfully removed the old fork, you can proceed with fitting the threadless fork onto your bike.
Choosing the Proper Headset
When fitting threadless forks, it is important to choose the proper headset in order to ensure a smooth and secure installation. The headset is responsible for connecting the fork steerer tube to the frame’s head tube, allowing for seamless steering and handling of the bicycle.
Consider the Head Tube and Fork Steerer Tube Diameter
The first thing to consider when choosing a headset is the diameter of your bike’s head tube and fork steerer tube. These dimensions must match in order for the headset to fit properly. It is important to measure the inner diameter of your head tube and the outer diameter of your fork steerer tube to ensure compatibility.
Choose the Right Type of Headset
There are several types of headsets available on the market, including external cup, integrated, and tapered headsets. The type of headset you choose will depend on your specific bike frame and fork specifications.
- External cup headset: This type of headset has cup-shaped components that sit outside the head tube. It is a common and versatile option that works well with a wide range of bike frames.
- Integrated headset: As the name suggests, this type of headset is integrated into the head tube and provides a sleek and clean look. It is commonly found on modern frames with a 1.5″ head tube diameter.
- Tapered headset: This type of headset is designed for forks with a tapered steerer tube. It has different diameters on the upper and lower bearings, providing improved stability and stiffness.
When choosing the type of headset, it is important to match it with your specific bike frame and fork requirements. Consult your bike manufacturer’s specifications or seek professional advice to ensure compatibility.
Consider the Quality and Material
The quality and material of the headset will also play a role in its performance and durability. Look for headsets made from high-quality materials such as aluminum or stainless steel, as they are known for their strength and corrosion resistance.
Additionally, consider the quality of the bearings in the headset. Smooth and durable bearings will provide better steering performance and longevity. Look for sealed cartridge bearings, as they offer excellent protection against dirt, water, and dust.
Overall, choosing the proper headset involves considering the dimensions, type, and quality of the headset. By selecting the right headset for your bike, you can ensure a secure and reliable installation, resulting in a smoother and more enjoyable riding experience.
Installing the Crown Race
Installing the crown race is an important step in fitting threadless forks on your bike. The crown race is a small metal ring that sits at the bottom of the steerer tube and provides a smooth surface for the bearings to rotate on.
Here are the steps to install the crown race:
| Step | Description |
|---|---|
| 1 | First, make sure the steerer tube is clean and free of any debris. Use a clean cloth or rag to wipe away any dirt or grease. |
| 2 | Apply a thin layer of grease to the top of the steerer tube. This will help the crown race slide into place smoothly. |
| 3 | Hold the crown race by the outer edge and gently tap it into place with a crown race installation tool. Make sure it is aligned properly and sits flush against the bottom of the steerer tube. |
| 4 | Use a rubber mallet or a block of wood to lightly tap the crown race into its final position. Be careful not to use too much force, as this could damage the crown race or the steerer tube. |
| 5 | Check that the crown race is seated securely by gently pressing down on it. It should not move or rotate. |
Once the crown race is installed, you can proceed with the rest of the fork installation process. Remember to follow the manufacturer’s instructions and use the appropriate tools for each step. Proper installation of the crown race is essential for the smooth operation of your bike’s steering system.
Attaching the Stem
After the fork has been installed, the next step is to attach the stem to the fork. The stem is what connects the handlebars to the fork and allows you to steer the bike.
To attach the stem, follow these steps:
- Place the stem onto the top of the fork steerer tube.
- Align the stem with the front wheel of the bike.
- Insert the bolts into the stem and tighten them using a hex wrench.
- Ensure that the stem is securely attached to the fork by giving it a firm tug.
It is important to note that the stem should be aligned straight with the front wheel in order to ensure proper steering functionality. If the stem is not aligned correctly, it can cause handling issues and potentially be dangerous.
Once the stem is attached, you can then proceed to attach the handlebars onto the stem. This is typically done by inserting the handlebar into the stem and tightening the bolts to secure it in place. Make sure to align the handlebars with the front wheel as well.
After the stem and handlebars are securely fastened, double-check all bolts to ensure they are tightened properly. It is recommended to consult the manufacturer’s instructions or a professional mechanic if you are unsure about the correct tightening specifications.
Adjusting and Testing the Fork
Once the threadless fork is installed correctly on your bicycle, you will need to adjust it to ensure proper functioning. Follow the steps below to adjust and test your fork:
1. Check the stem and headset
- Make sure the stem is tightened securely onto the steerer tube.
- Check that the headset is properly adjusted; there should be no play or looseness.
2. Check the fork alignment
- While standing in front of the bike, check if the fork legs are aligned symmetrically with the front wheel.
- If the fork legs appear misaligned, loosen the stem bolts and align the fork legs correctly before tightening the bolts again.
3. Test for smooth steering
- Hold onto the handlebars and apply the front brake.
- Try turning the handlebars gently from left to right.
- The steering should feel smooth and free from any binding or resistance.
- If you experience any stiffness or binding, check the headset adjustment and repeat the alignment process.
4. Test for play or wobbling
- Apply the front brake and rock the bike forward and backward.
- If you feel any play or wobbling in the fork, there may be an issue with the headset or the bearings.
- Inspect the headset, bearings, and adjust as necessary.
It’s crucial to properly adjust and test the threadless fork before riding your bicycle to ensure safe and reliable performance. If you are unsure about any step or encounter difficulties, it’s recommended to consult a professional bicycle mechanic for assistance.
