Harley-Davidson motorcycles are known for their powerful engines and iconic style. One key component of a Harley-Davidson’s front suspension system is the fork tubes. These tubes are responsible for supporting the front wheel and absorbing shocks and vibrations while riding. If you need to replace or upgrade your Harley-Davidson’s fork tubes, it is crucial to measure them correctly to ensure a proper fit.
Measuring the length and diameter of your Harley-Davidson’s fork tubes is a straightforward process that requires only basic tools. To begin, make sure the front wheel is off the ground and that the motorcycle is stable. First, measure the length of the fork tubes from the top to the bottom. Use a tape measure or a ruler and start from the top of the fork seals to the bottom where the fork tubes meet the triple tree.
Next, measure the diameter of the fork tubes. This can be done by using a caliper or a measuring tape. Take the measurement at the top of the fork tube, just below the triple tree. Be sure to measure the outer diameter, rather than the inner diameter. It is important to measure both fork tubes, as they may have slightly different dimensions.
Once you have measured the length and diameter of your Harley-Davidson’s fork tubes, you can confidently search for replacement or upgraded fork tubes that will fit your motorcycle perfectly. Accurate measurements are crucial to ensure a proper fit and optimal performance of your front suspension system. With the right fork tubes, your Harley-Davidson will handle and ride as smoothly as ever.

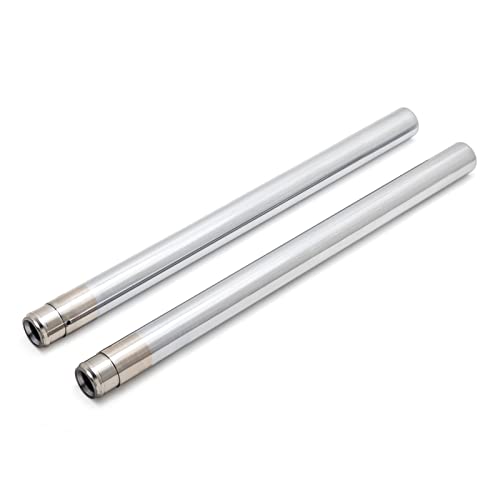

What are Harley Fork Tubes?
Harley Fork Tubes are an essential component of a Harley-Davidson motorcycle’s front suspension system. They are the cylindrical steel tubes that connect the front wheel to the motorcycle’s frame.
The fork tubes play a crucial role in the bike’s overall stability, handling, and ride quality. They provide support for the front wheel and allow it to pivot, enabling the motorcycle to turn smoothly. Additionally, they help to absorb road impacts and shocks, ensuring a comfortable and controlled ride.
Harley-Davidson motorcycles traditionally feature a telescopic fork design, which consists of two fork tubes – an outer tube and an inner tube. The outer tube is larger in diameter and houses the inner tube, allowing it to slide up and down. Inside the inner tube, there are springs and dampening mechanisms that control the movement and absorb shocks.
| Key Components of Harley Fork Tubes |
|---|
| 1. Outer Tube |
| 2. Inner Tube |
| 3. Springs |
| 4. Dampening Mechanisms |
Outer Tube
The outer tube is the larger of the two tubes and provides structural support to the entire fork assembly. It is typically made from durable steel and is responsible for maintaining the overall rigidity and strength of the front suspension.
Inner Tube
The inner tube is located inside the outer tube and is responsible for the actual movement of the front suspension. It slides up and down within the outer tube, allowing the front wheel to react to road conditions and turn the motorcycle.
Springs
Springs are utilized within the fork tubes to provide suspension travel and absorb road impacts. They help to minimize the transfer of shock to the rider and ensure a smoother ride experience.
Dampening Mechanisms
Dampening mechanisms, such as hydraulic and pneumatic systems, are incorporated into the fork tubes to control the speed and force of the fork’s movement. They regulate the compression and rebound of the suspension, ensuring optimal performance and stability.
In conclusion, Harley Fork Tubes are vital components of a Harley-Davidson motorcycle’s front suspension system. They provide structural support, enable the front wheel to pivot, absorb shocks, and enhance the overall riding experience. Regular maintenance and inspection of the fork tubes are crucial to ensure optimal performance, safety, and longevity of the motorcycle.
Why Measure Harley Fork Tubes?
Measuring the fork tubes on your Harley is an important step in maintaining your motorcycle and ensuring a smooth and safe ride. There are several reasons why measuring your Harley fork tubes is necessary:
|
1. Replacement: Measuring the fork tubes can help you determine the correct size for replacement parts. Over time, fork tubes may become worn or damaged, and replacing them with the right size is crucial for optimal performance and safety. |
|
2. Suspension Setup: Accurate measurements of the fork tubes are necessary for setting up your suspension properly. Whether you are adjusting the sag, changing the fork oil, or installing aftermarket suspension components, knowing the precise measurements is essential for achieving the desired suspension characteristics. |
|
3. Wheel Alignment: Measuring the fork tubes can help you assess the wheel alignment of your Harley. Uneven fork tube lengths can lead to misalignment, which can affect the handling and stability of your motorcycle. By ensuring that both fork tubes are aligned correctly, you can improve the overall performance and handling of your Harley. |
|
4. Preventive Maintenance: Regularly measuring your fork tubes can help you identify any wear or damage before it becomes a major issue. By addressing any problems early on, you can prevent more significant damage and costly repairs. Measuring your fork tubes is a simple and proactive way to keep your Harley in top condition. |
Overall, measuring the fork tubes on your Harley is essential for proper maintenance, performance, and safety. It allows you to determine the correct size for replacement parts, set up your suspension accurately, align your wheels correctly, and identify and address any potential issues early on. By taking the time to measure your fork tubes, you can enjoy a smooth and reliable ride on your Harley for years to come.
Step 1: Gather the Required Tools
Before you can measure your Harley fork tubes, you will need to gather a few essential tools. Having these tools ready beforehand will make the process much more efficient and accurate. Here are the tools you will need:
Tape Measure
A tape measure is an essential tool for accurately measuring the length of your Harley fork tubes. Make sure to use a tape measure that is long enough to reach the entire length of the tube.
Vernier Caliper
A vernier caliper is another important tool that will help you measure the diameter of your fork tubes accurately. This tool allows for precise measurements by using a sliding scale and a fixed scale.
Make sure to check that your vernier caliper is properly calibrated before use to ensure accurate measurements.
Clean Cloth
Having a clean cloth on hand will be useful for wiping down the fork tubes and removing any dirt or debris that could affect your measurements. It is important to have a clean and clear surface to obtain accurate measurements.
By gathering these essential tools, you will be ready to move on to the next step in measuring your Harley fork tubes. Having the right tools at hand will make the process easier and more accurate.
Tools Needed to Measure Harley Fork Tubes
Measuring the fork tubes on your Harley is an important task to ensure proper fitment and functionality. To accurately measure the fork tubes, you will need a few tools:
| Tool | Description |
|---|---|
| Vernier Caliper | A vernier caliper is a precision measuring instrument that can be used to measure the diameter or width of the fork tubes. It provides accurate and reliable measurements with its precise jaws and sliding scale. |
| Measurement Tape | A measurement tape is useful for measuring the length of the fork tubes. Make sure to use a tape that has clear markings and is long enough to measure the full length of the tubes. |
| Level | A level is necessary to ensure that the fork tubes are aligned properly during measurement. It helps in achieving accurate measurements and maintains the integrity of the measurement process. |
| Clean Cloth | A clean cloth is essential to wipe off any dirt or debris on the fork tubes before measurement. This ensures that the measurement is not affected by any external factors and provides accurate results. |
| Pen and Paper | Having a pen and paper handy allows you to record the measurements and keep track of important information. This helps in maintaining organized documentation and easily referring back to the measurements when needed. |
With these tools in hand, you can confidently measure your Harley’s fork tubes and ensure they meet the necessary specifications for proper installation and operation.
Step 2: Remove the Fork Tubes
Before you can measure the Harley fork tubes, you will need to remove them from the motorcycle.
1. Start by securing your motorcycle in an upright position using a motorcycle stand or lift to ensure stability during the removal process.
2. Remove any components that may obstruct the fork tube removal, such as front fenders or brake calipers.
3. Loosen the pinch bolts located at the lower end of the fork tubes using an appropriate socket or wrench.
4. Gently slide the fork tubes out of the triple tree clamp, taking note of any spacers or washers that may be present.
5. Once the fork tubes are removed, inspect them for any signs of damage or wear, such as leaking oil or bent tubes. If any issues are found, it may be necessary to replace the fork tubes before proceeding.
6. Clean the fork tubes using a suitable cleaning agent and a clean cloth to remove any dirt or debris that may affect accurate measurements.
7. Ensure that the fork tubes are completely dry before proceeding with the measurement process to prevent any false readings.
By following these steps, you will be able to remove the fork tubes from your Harley motorcycle in preparation for measuring them accurately.
How to Remove Harley Fork Tubes
When it comes to removing the fork tubes on your Harley, it’s important to follow the proper procedure to ensure that the job is done correctly and safely. Here are the steps you should take:
- Start by removing the front wheel of your Harley. This will make the removal process easier and safer.
- Next, remove the brake caliper from the fork leg. Use a suitable wrench or socket to loosen and remove the caliper bolts.
- Once the caliper is removed, take off the front fender if it is attached to the fork leg. This may require removing some bolts or screws depending on your particular Harley model.
- With the caliper and fender out of the way, locate the pinch bolt on the lower triple tree. This holds the fork tube in place and will need to be loosened using an appropriate size socket or wrench.
- After loosening the pinch bolt, you can remove the fork tube from the triple tree. Begin by gently pulling downward on the fork tube to release it from the triple tree. If it is stubborn, you may need to tap it with a rubber mallet or use a fork tube puller tool.
- Once the fork tube is free from the triple tree, slide it out from the bottom of the fork leg. Be careful not to damage the fork seal or any other components as you remove the tube.
- Repeat this process for the other fork tube if you need to remove both. Remember to always work on one side at a time to maintain balance and stability of the motorcycle.
By following these steps, you should be able to successfully remove the fork tubes from your Harley. If you are unsure or uncomfortable with any part of the process, it is always best to consult a professional mechanic or refer to your Harley’s service manual for guidance.
Step 3: Measure the Fork Tubes
Now that you have removed the fork tubes from your Harley, it’s time to measure them. Here are the steps to follow:
1. Clean the fork tubes thoroughly to remove any dirt or debris that might affect the measurements.
2. Take a measuring tape or caliper and carefully measure the outer diameter of the fork tubes. Make sure to measure at multiple points along the length of the tube to ensure accuracy.
3. Write down the measurement in inches or millimeters, depending on your preference.
4. Next, measure the inner diameter of the fork tubes. Again, measure at different points and record the measurement.
5. Subtract the inner diameter from the outer diameter to obtain the wall thickness of the fork tubes. This measurement will help determine the overall strength and durability of the tubes.
6. Finally, check the overall length of the fork tubes and ensure they match the specifications provided by the manufacturer. Measure from the top of the tube to the bottom, including any threads or caps.
By following these steps, you can accurately measure your Harley’s fork tubes and ensure they are in optimal condition. Knowing the measurements will also come in handy if you ever need to replace or upgrade your fork tubes in the future.
Methods to Measure Harley Fork Tubes
Harley Davidson motorcycles have a unique fork tube design that requires precise measurement for proper fitment or replacement. If you need to measure your Harley fork tubes, here are some methods you can use:
1. Digital Caliper: A digital caliper is a handy tool for measuring fork tubes accurately. Simply open the caliper’s jaws and place them around the fork tube. Close the jaws gently until they touch the tube, making sure not to squeeze or distort it. The digital display will show you the precise measurement.
2. Vernier Caliper: Similar to a digital caliper, a vernier caliper can also be used to measure Harley fork tubes. The process is the same, where you gently close the jaws around the tube until they touch. Read the measurement on the vernier scale for an accurate reading.
3. Tape Measure: If you don’t have calipers, a tape measure can be used as an alternative measuring tool. Wrap the tape measure around the circumference of the fork tube, making sure it is snug but not too tight. Read the measurement where the end of the tape overlaps.
4. Micrometer: A micrometer is a precise measuring instrument that can be used to measure the diameter of the fork tube accurately. Place the fork tube between the anvil and spindle of the micrometer, and tighten the spindle until it contacts the tube. Read the measurement on the micrometer’s scale.
5. Shop Manual: If you have a shop manual specific to your Harley Davidson model, it may include the exact specifications for fork tube measurements. This method provides the most accurate and reliable measurements and is highly recommended.
When measuring Harley fork tubes, it’s essential to be precise and ensure the accuracy of your measurements. Using the methods above, you can confidently measure your fork tubes and find the appropriate replacement parts or perform any necessary adjustments for your Harley Davidson motorcycle.
