Manitou forks are a popular choice among mountain bikers due to their durability and performance. However, like any mechanical component, they can require maintenance and repair from time to time. Whether you’re experiencing a loss of suspension travel, leaking oil, or a compression issue, this guide will walk you through the steps to repair your Manitou forks.
Step 1: Assess the Problem
The first step in repairing your Manitou forks is to assess the problem. Is the fork not compressing or rebounding as it should? Is there oil leaking out of the seals? By identifying the specific issue, you can better determine the necessary repairs and replacement parts.
Step 2: Gather the Tools and Parts
Before you start the repair process, make sure you have all the necessary tools and parts. This may include a fork seal kit, suspension oil, Allen keys, a torque wrench, and a rubber mallet. Having everything ready will save you time and hassle during the repair.
Step 3: Disassemble the Fork
Begin by removing the fork from the bike and installing it in a work stand. Use the appropriate tools to disassemble the fork, including removing the lowers, dust seals, and foam rings. Take care to keep all the parts organized and in the correct order for reassembly.
Step 4: Inspect and Clean
Once the fork is disassembled, inspect all the parts for any signs of damage or wear. Clean each component thoroughly using suspension cleaner or isopropyl alcohol to remove any dirt or debris. This will ensure smooth operation and prevent any potential issues down the line.
Step 5: Replace Faulty Parts
If you’ve identified any faulty or worn-out parts during the inspection, replace them with new ones. This may include the seals, bushings, or even the damper cartridge. Follow the manufacturer’s instructions and use the appropriate tools to ensure the correct installation of the new parts.
Step 6: Reassemble the Fork
Now that you have everything cleaned and the necessary parts replaced, it’s time to reassemble your Manitou forks. Follow the reverse order of disassembly, making sure to tighten all the bolts to the manufacturer’s specifications. Use a torque wrench to achieve the correct torque settings and prevent over-tightening.
Step 7: Test and Fine-Tune
With the forks reassembled, it’s time to test them. Reinstall the fork on your bike and take it for a test ride. Pay attention to any unusual noises or performance issues. If needed, make any necessary adjustments to the rebound, compression, or other settings to fine-tune the fork’s performance.
Step 8: Regular Maintenance
To prolong the lifespan of your Manitou forks, it’s important to perform regular maintenance. This includes cleaning and lubricating the stanchions, inspecting the seals for any signs of wear, and checking the air pressure and sag settings. By staying proactive with maintenance, you can prevent major issues and ensure a smooth and reliable ride.
By following these steps and taking care of your Manitou forks, you can keep them in top condition for many rides to come. Remember to always consult the manufacturer’s instructions and seek professional assistance if needed. Happy riding!
What are Manitou forks?

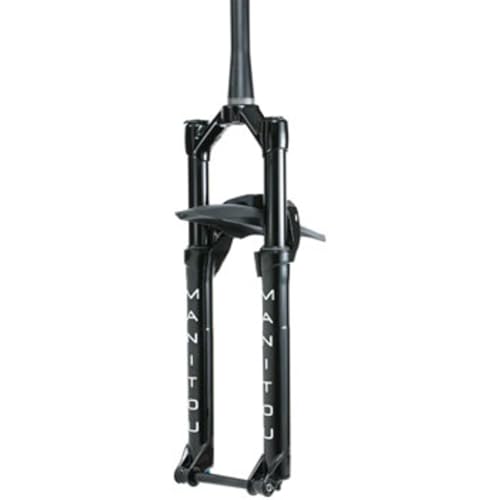

Manitou forks are a type of suspension fork commonly used in mountain bikes. They are known for their high performance and durability, making them popular among mountain bike enthusiasts and professional riders.
These forks are designed to absorb shocks and impacts while riding on rough terrains, providing a smoother and more comfortable ride. They consist of various components such as stanchions, sliders, seals, and springs, which work together to provide suspension and damping.
Manitou forks are known for their advanced technologies and innovative features. They often incorporate features such as adjustable compression and rebound damping, air or coil spring systems, and external adjustments for fine-tuning the fork’s performance based on the rider’s preferences and riding conditions.
Regular maintenance is crucial to ensure the optimal performance and longevity of Manitou forks. This includes cleaning and inspecting the forks regularly, checking the oil levels, and replacing worn-out seals and bushings. Additionally, periodic servicing and tuning by a professional can help to maintain the fork’s performance at its best.
In conclusion, Manitou forks are a popular choice among mountain bikers due to their high performance and durability. Understanding the various components and technologies of these forks, as well as practicing regular maintenance, can help ensure a smooth and enjoyable ride on challenging terrains.
Common issues with Manitou forks
1. Stiction:
One common issue with Manitou forks is stiction. Stiction refers to the friction or resistance encountered when the fork is compressed or extended. This can lead to a decrease in fork performance and a less comfortable ride.
2. Seal leakage:
Another common problem is seal leakage. The seals on the fork can wear out over time due to constant use or exposure to dirt and debris. This can result in oil leaks and a loss of fork performance. Regular maintenance and seal replacements are crucial to prevent this issue.
3. Air spring issues:
Manitou forks often use air springs to provide suspension. Issues with the air spring can cause the fork to feel too soft or too stiff. This can be due to improper settings or a leak in the air chamber. Checking the air pressure and ensuring it is within the recommended range can help address this issue.
4. Damaged stanchions:
Stanchions are the upper tubes of the fork that slide in and out of the lower legs. Damage to the stanchions, such as scratches or dents, can affect the performance and potentially lead to seal leakage. Regular inspections and careful handling can help prevent stanchion damage.
5. Rebound damping issues:
Rebound damping controls the rate at which the fork extends after being compressed. If the rebound damping is not properly adjusted, the fork can feel too slow or too fast. Finding the right balance and making adjustments as needed is important for optimal fork performance.
6. Fork alignment:
Improper fork alignment can cause handling problems and affect the overall performance of the bike. Ensuring that the fork is properly aligned with the front wheel and frame is essential. If misalignment is detected, it may require professional assistance to correct.
Conclusion
These are some of the common issues that riders may experience with Manitou forks. Regular maintenance, proper setup, and addressing issues promptly can help ensure optimal fork performance and a better riding experience.
Tools needed for repairing manitou forks
Repairing manitou forks can be a complex task, but having the right tools can make the job much easier. Here are some of the essential tools you will need:
1. Fork oil: Fork oil is used to lubricate the internal components of the fork and to provide smooth suspension action. Make sure to use the correct type and viscosity of fork oil recommended by the manufacturer.
2. Wrench set: A good set of wrenches will be needed to remove the various bolts and screws that hold the fork together. Make sure to have both metric and imperial sizes, as different forks may use different sizes.
3. Allen keys: Allen keys, also known as hex keys, are used to loosen and tighten the socket head screws commonly found on manitou forks. It is advisable to have a set of allen keys in various sizes to fit different screws.
4. Torque wrench: A torque wrench is crucial for tightening the bolts and screws to the correct torque specifications. This ensures that the fork is assembled correctly and prevents over or under tightening, which can lead to damage or failure.
5. Seal driver: A seal driver is a tool designed to help install the oil seals in the fork without damaging them. It ensures proper alignment and prevents leaks. It is recommended to have a seal driver that matches the size of the fork’s oil seals.
6. Needle-nose pliers: Needle-nose pliers are useful for grasping and manipulating small components, such as circlips and retaining rings, which may need to be removed or replaced during the repair process.
7. Suspension pump: A suspension pump is used to adjust the air pressure in the fork’s air chamber, if applicable. This tool is essential for maintaining the proper suspension performance of the fork.
8. Cleaning supplies: It is important to clean the fork thoroughly before performing any repairs. This may require cleaning brushes, rags, and solvent to remove dirt, grime, and old lubricants from the fork’s components.
9. Work stand: A work stand or bike repair stand is highly recommended for holding the fork securely in place during the repair process. This allows for easier access to the fork and prevents damage to other parts of the bike.
10. Service manual: While not a physical tool, a service manual is invaluable for repairing manitou forks. It provides detailed instructions and specifications specific to your fork model, ensuring that you perform the repairs correctly.
Having these tools at hand will greatly facilitate the task of repairing manitou forks, and help ensure that the job is done properly and safely.
Step-by-step guide to repairing Manitou forks
Manitou forks are popular among mountain bikers for their durability and performance. However, like any piece of equipment, they may require maintenance and repairs over time. If you are experiencing issues with your Manitou forks, here is a step-by-step guide to help you repair them.
Step 1: Identify the problem
The first step is to identify the specific issue with your Manitou forks. Common problems may include leaking oil, loss of travel or stiffness, or damaged seals. Understanding the problem will help you determine the appropriate repairs.
Step 2: Gather the necessary tools
Before you begin the repair process, gather all the necessary tools. This may include a set of Allen keys, a suspension pump, a seal kit, a torque wrench, a socket set, and any other specific tools recommended by Manitou.
Step 3: Remove the front wheel and brakes
To start the repair, remove the front wheel and brakes. This will give you easier access to the forks and allow for a more thorough inspection and repair process.
Step 4: Drain the fork oil
Next, you will need to drain the fork oil from the Manitou forks. This can typically be done by removing the lower leg and carefully pouring out the oil. Properly dispose of the oil as per local regulations.
Step 5: Inspect the fork components
With the oil drained, inspect the fork components for any signs of damage or wear. This includes checking the seals, bushings, stanchions, and any other relevant parts. Replace any damaged or worn parts as needed.
Step 6: Clean and lubricate the fork
Thoroughly clean the fork stanchions and any other relevant parts using a non-abrasive cleaner. Once cleaned, apply a thin layer of suspension fork oil or Manitou-approved lubricant to ensure smooth operation.
Step 7: Replace the seals and o-rings
If the seals or o-rings are damaged or worn, it is important to replace them. Using the seal kit specific to your Manitou forks, carefully remove the old seals and o-rings and install the new ones as instructed in the provided manual.
Step 8: Reassemble the forks
After all necessary repairs and replacements have been made, reassemble the forks. Make sure to follow the provided instructions and torque specifications to ensure proper assembly.
Step 9: Reinstall the front wheel and brakes
Once the forks are reassembled, reinstall the front wheel and brakes. Double-check that everything is securely in place and functioning correctly.
Step 10: Test the forks
Before taking your bike out on the trails, test the forks to ensure they are working properly. Bounce the bike a few times to check for any unusual noises or stiffness. If everything feels and sounds good, you’re ready to enjoy your newly repaired Manitou forks!
Remember, if you are unsure or uncomfortable with any part of the repair process, it is always recommended to seek professional help or consult the official Manitou documentation.
Tips for maintaining Manitou Forks
Proper maintenance is essential for keeping your Manitou forks in optimal condition. Regular maintenance not only extends the lifespan of your forks but also ensures a smoother and safer riding experience. Here are some tips to help you maintain your Manitou forks:
| Tip | Description |
| 1 | Clean the forks regularly |
| 2 | Inspect for any signs of damage or wear |
| 3 | Check the air pressure |
| 4 | Ensure proper lubrication |
| 5 | Adjust the rebound and compression settings |
| 6 | Regularly replace the oil and seals |
| 7 | Have a professional tune-up |
Regularly cleaning your Manitou forks is the first step towards proper maintenance. This involves removing any dirt, debris, or mud that may have accumulated on the fork legs, seals, and stanchions. Use a soft brush or cloth to gently clean the forks, and avoid using harsh chemicals that may damage the parts.
Inspecting your forks for signs of damage or wear is crucial for identifying any potential issues before they become major problems. Look for any cracks, dents, or scratches on the fork legs, and check the seals and stanchions for any signs of oil leakage. If you notice any damage, it’s important to address it promptly to prevent further damage or accidents while riding.
Checking the air pressure in your Manitou forks is essential for maintaining optimal performance. Improper air pressure can affect the fork’s responsiveness and may cause discomfort or even damage during rides. Follow the manufacturer’s guidelines for the recommended air pressure and adjust accordingly based on your riding style and weight.
Proper lubrication is key for ensuring smooth operations of the fork’s internal components. Apply lubricant to the fork seals and stanchions regularly to reduce friction and improve overall performance. Be sure to use a lubricant specifically designed for bike forks, and avoid using excessive amounts that may attract dirt or debris.
Adjusting the rebound and compression settings on your Manitou forks can enhance your riding experience and improve control. Experiment with different settings to find the right balance that suits your riding style and terrain. If you’re unsure about the adjustments, consult the fork’s user manual or seek professional advice.
Regularly replacing the oil and seals in your Manitou forks is necessary to maintain optimal performance. Over time, the oil may degrade, and the seals may wear out, affecting the fork’s performance and safety. Follow the manufacturer’s guidelines for oil replacement intervals and inspect the seals regularly for any signs of wear or damage.
While you can perform some maintenance tasks on your own, it’s recommended to have a professional tune-up your Manitou forks at least once a year or as needed. A professional tune-up will ensure that all components are properly inspected, adjusted, and serviced to maximize performance and safety.
By following these tips for maintaining your Manitou forks, you can prolong their lifespan and enjoy a smoother and safer riding experience.
