Female spade connectors are commonly used in electrical wiring systems for their ease of use and reliability. These connectors are designed to provide a secure and stable connection between wires and terminals. However, it is important to measure the female spade connector correctly to ensure that it is compatible with the male spade terminal.
Step 1: Start by identifying the size of the female spade connector you need to measure. The size of the connector is usually indicated by the width of the female terminal. Common sizes include 0.110 inch (2.8mm), 0.187 inch (4.75mm), and 0.250 inch (6.35mm).
Step 2: Once you have identified the size of the female spade connector, you can proceed to measure its width. Use a caliper or a ruler with millimeter or inch measurements to determine the width of the female terminal. Ensure that the measurement is accurate to avoid any compatibility issues.
Step 3: In addition to measuring the width, it is also important to check the thickness of the female spade connector. This measurement is crucial as it determines the fit of the connector onto the male spade terminal. Measure the thickness of the female terminal using a caliper or ruler.
Step 4: Finally, inspect the female spade connector for any damage or corrosion. Ensure that the connector is clean and in good condition before using it in your electrical wiring system. If necessary, clean or replace the connector to ensure optimal performance.
By following these steps, you can accurately measure a female spade connector and ensure compatibility with the male spade terminal. This will help prevent any electrical issues and ensure that your wiring system functions properly.
Why is it important to measure female spade connector accurately?
Accurate measurement of a female spade connector is essential for several important reasons:
1. Compatibility: Female spade connectors come in various sizes, and accurately measuring them ensures compatibility with the male spade connectors or terminals they will connect with. Using the wrong size connector can result in a poor electrical connection or even damage to the equipment.
2. Reliability: A properly measured and fitted female spade connector ensures a reliable electrical connection. If the connector is too loose, it may result in intermittent or weak connections, leading to potential malfunctioning of electrical circuits or equipment.
3. Safety: Accurate measurement and fitting of female spade connectors reduce the risk of electrical accidents. Loose or incorrectly sized connectors can cause sparks, short circuits, or electrical shocks, endangering both people and property.
4. Efficiency: The accurate measurement of female spade connectors ensures efficient electrical connections, reducing the risk of energy loss or inefficient electrical conductivity. This is particularly important in sensitive applications or systems where high-performance connections are required.
5. Cost-effectiveness: By measuring female spade connectors accurately, one can avoid purchasing incorrect or incompatible connectors, saving both time and money. Additionally, it helps prevent the need for costly repairs or replacements caused by poor connections.
Given the importance of accurate measurement in ensuring compatibility, safety, reliability, efficiency, and cost-effectiveness, it is crucial to measure female spade connectors correctly before making any electrical connections.
Tools needed for measuring female spade connector
To accurately measure a female spade connector, you will need a few essential tools. These tools will help you determine the correct size and ensure a proper fit. Below is a list of the tools you will need:
| Tool | Description |
|---|---|

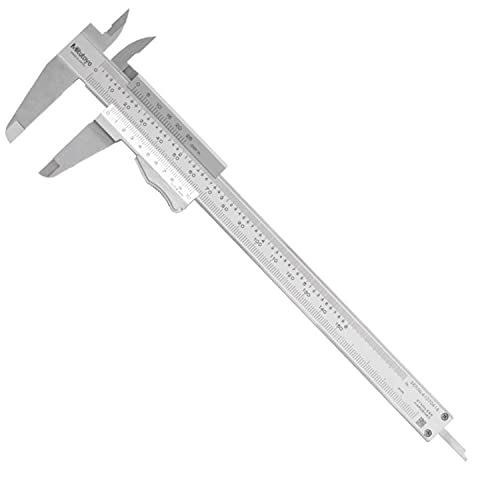

| Vernier calipers | This tool is used to measure the overall width and thickness of the connector. |
| Wire gauge | A wire gauge will help you determine the correct size of the wire that the connector can accommodate. |
| Digital multimeter | Use a digital multimeter to measure the electrical resistance and ensure proper conductivity. |
| Precision ruler | A precision ruler will help you measure the length of the connector and ensure a perfect fit. |
With these tools at your disposal, you will be able to accurately measure a female spade connector and ensure it is the right size for your application. Remember to take precise measurements and double-check your findings before making any connections.
Step-by-step guide on measuring female spade connector
Measuring a female spade connector is crucial when selecting the appropriate size and type for your specific application. Here is a step-by-step guide to help you accurately measure a female spade connector:
Step 1: Use a caliper or ruler
Start by using a caliper or ruler to measure the width and thickness of the female spade connector. These measurements will help determine the size of the connector.
Step 2: Measure the width
Hold the female spade connector firmly and measure the width of the metal part. This should be the distance between the outer edges of the connector on the wider side. Record this measurement in millimeters.
Step 3: Measure the thickness
Next, measure the thickness of the female spade connector. This measurement should be taken from the thickest part of the metal connector. Record this measurement in millimeters as well.
Step 4: Check for insulation
Some female spade connectors might have insulation surrounding the metal part. If this applies to your connector, measure the outer dimensions of the insulation and record them separately. This will help ensure a proper fit with the mating male connector.
| Measurement | Value (mm) |
|---|---|
| Width of the metal part | [Width measurement] |
| Thickness of the metal part | [Thickness measurement] |
| Width of the insulation (if applicable) | [Insulation width measurement] |
| Thickness of the insulation (if applicable) | [Insulation thickness measurement] |
Note: When measuring the width and thickness, ensure that the measuring tool is aligned parallel to the edges of the connector for accurate results.
By following this step-by-step guide, you can confidently measure a female spade connector and select the correct size for your specific application.
Common mistakes to avoid when measuring female spade connector
Measuring a female spade connector accurately is essential for a successful electrical connection. However, there are some common mistakes that people often make when measuring these connectors. By being aware of these mistakes, you can ensure that your measurements are accurate and avoid potential issues.
1. Not using the correct measuring tools
One of the most common mistakes made when measuring a female spade connector is not using the correct measuring tools. Using a ruler or tape measure may provide an approximation, but it may not give you accurate measurements. It is important to use calipers or a micrometer, which provide precise measurements, to ensure the correct size of the connector.
2. Ignoring the insulation size
When measuring a female spade connector, it is important to consider the insulation size. Some people only measure the metal part of the connector and neglect the size of the insulation. Ignoring the insulation size can lead to compatibility issues when trying to connect the connector to a corresponding male spade connector. Taking both the metal and insulation size into account will ensure a proper fit.
3. Measuring without disconnecting the connector
Another mistake that people often make is measuring the female spade connector without disconnecting it from the wire or terminal. This can lead to inaccurate measurements, as the connector may not be fully extended or in its natural position. To obtain precise measurements, it is important to disconnect the connector from the wire or terminal before measuring it.
4. Failing to measure the material thickness
Some people overlook the importance of measuring the material thickness of the female spade connector. Different connectors are made with different material thicknesses, which can affect the compatibility and durability of the connection. Be sure to measure the material thickness of the connector to ensure it meets the requirements of your specific application.
5. Neglecting to double-check the measurements
Lastly, it is crucial to double-check your measurements to avoid any errors or oversights. Even a small mistake in measurement can lead to compatibility issues or electrical problems. Take the time to review and confirm your measurements before making any purchasing or installation decisions.
By avoiding these common mistakes when measuring a female spade connector, you can ensure accurate measurements and a successful electrical connection. Taking the extra time and care to measure correctly will save you from potential issues down the line.
Benefits of accurately measuring female spade connector
Accurately measuring a female spade connector offers several benefits, ensuring the proper functioning of electrical connections. Here are some advantages that come with precise measurements:
|
1. Compatibility: Accurate measurements of the female spade connector ensure compatibility with the corresponding male spade connector. This compatibility guarantees a secure and reliable electrical connection without any loose or weak connections. |
|
2. Prevention of damage: Proper measurement of the female spade connector helps prevent any potential damage to the connector itself or the connected electrical components. Knowing the exact size ensures that the connector fits perfectly, reducing the risk of over-tightening or improper installation. |
|
3. Efficient electrical flow: An accurately measured female spade connector facilitates efficient electrical flow. The correct fit and size prevent any resistance or loss of current, resulting in improved performance and reduced energy waste. |
|
4. Enhanced safety: Accurate measurements ensure a secure and tightly fitted female spade connector, reducing the risk of electrical accidents or short circuits. This enhances the overall safety of the electrical system, minimizing the chances of electrical hazards. |
|
5. Time and cost-saving: Precise measurements of a female spade connector save time and costs by eliminating the need for trial and error or potential rework due to incompatible sizes. It minimizes the chances of purchasing incorrect connectors, thus optimizing resources. |
Overall, accurately measuring a female spade connector is crucial for ensuring compatibility, preventing damage, promoting efficient electrical flow, enhancing safety, and saving time and costs. It is a vital step in maintaining reliable electrical connections and maximizing the performance of electrical systems.
Additional tips for measuring female spade connector
When measuring a female spade connector, it is important to ensure accuracy and precision. Here are some additional tips to help you with the process:
1. Use calipers or a ruler with millimeter markings
Using precise measuring tools such as calipers or a ruler with millimeter markings can help you accurately measure the dimensions of a female spade connector. Make sure to double-check your measurements to avoid any mistakes.
2. Measure the width and thickness of the spade connector
Take measurements of both the width and thickness of the female spade connector. The width refers to the distance between the outer edges of the connector, while the thickness refers to the depth or height of the connector. These measurements are crucial in determining the compatibility and fit of the connector.
Pro tip: When measuring the width, make sure to account for any insulation or covering that might be present on the connector.
3. Check the compatibility with the male spade connector
Before making a purchase, it is important to ensure that the measurements of the female spade connector match those of the corresponding male spade connector. The dimensions should be compatible to ensure a secure and proper connection.
Note: The most common sizes for female spade connectors are 2.8mm, 4.8mm, and 6.3mm.
By following these additional tips, you can accurately measure a female spade connector and ensure a proper fit for your electrical connections.
