A well-crafted cutting fixture can elevate your woodworking projects significantly. It’s crucial to ensure your angles are precise, making this simple contraption an indispensable addition to your workshop. Begin by gathering quality materials: a sturdy board, some wood nails, and an accurate saw for cutting. This setup will aid in creating accurate corners for frames and other furniture.
Secure the board on a flat surface for stability. Carefully measure and mark the desired angle, typically at 45 degrees, using a protractor or square. Cut along this line with your preferred saw, making certain that the cut remains straight and clean. This step guarantees that your workpiece will fit snugly, promoting professional-looking results.
Position your workpiece within the fixture once the angles are prepared. Use clamps to hold it in place, ensuring it doesn’t shift during cutting. This technique not only improves safety but also enhances accuracy, allowing you to focus on achieving precise, smooth cuts without distractions.
Finally, test your fixture with scrap wood to identify any adjustments needed. Iterative testing and tweaking enable you to refine the entire process. This simple guide empowers you to build a tool that will serve you in numerous projects, from cabinetry to artistic displays.
Selecting the Right Materials for Your Mitre Tool
The choice of materials directly impacts the durability and performance of the cutting guide. For the frame, opt for high-quality hardwood like oak or maple, which provides strength and stability. Softwoods like pine may warp over time and lack the necessary rigidity.
Frame Material Options
- Hardwood: Offers excellent durability and resistance to warping.
- Softwood: Less expensive but prone to deformation if not properly treated.
For the base, using plywood is ideal due to its sturdiness and ability to hold a square edge, crucial for precise cuts. Aim for a thickness of at least ½ inch to prevent bending.
Cuts and Joints
- For cross braces, select the same hardwood as the frame to maintain uniformity and strength.
- Consider dowels or screws for joining pieces, ensuring the construction is secure and durable.
A smooth finish on the surfaces enhances the gliding of the saw and minimizes friction, which can lead to inaccurate cuts. Sanding the edges helps maintain a clean cut throughout the process.
Step-by-Step Guide to Cutting the Mitre Box Sides
Select suitable lumber for constructing the sides, typically using softwood such as pine or cedar. Measure and mark the desired length of each side, ensuring dimensions align with your project requirements.
Cutting the Sides
Securely clamp the wood to a stable surface to prevent movement. Employ a handsaw to execute straight cuts along the marked lines. Begin the cut gently and apply steady pressure, allowing the saw teeth to do the work for consistent results.
Finishing Touches
Inspect the cut edges for smoothness. If necessary, use sandpaper to refine the surfaces, removing any splinters. This ensures a clean fit when assembling the structure later on. Mark any additional angles needed for perfect corners to assist in further assembly.
Creating Accurate Cutting Angles Using a Hand Saw

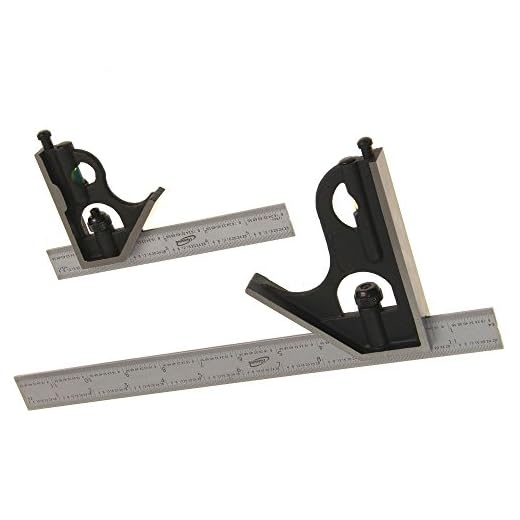

For precise angle cuts, I use a combination square to mark the desired angles on the workpiece. This tool ensures that I achieve the accurate measurements needed for clean joints.
Next, I position the wood securely in my clamping jig, making sure it doesn’t move during the cutting process. Stability is key to maintaining accuracy in the cut.
When I handle the saw, I align its edge with the marked line. I start the cut gently, applying minimal pressure to allow the blade to bite into the wood. Using a steady, even motion, I avoid jagged edges.
To ensure perfect alignment, I frequently check my progress against the marking. If I veer off, I adjust my angle gently without forcing the blade, maintaining a smooth line.
Once I approach the endpoint, I reduce the speed to prevent splintering. A controlled finish cuts down on the chances of errors and results in a cleaner edge.
Finally, I clean up any rough spots with a fine file or sandpaper, ensuring the surfaces fit well. Consistency in technique and attention to detail lead to superior results.
Finishing Touches: Sanding and Securing Your Assembly
Begin by sanding all surfaces to achieve a smooth finish. I recommend using a medium-grit sandpaper (around 120 grit) for the initial pass, followed by fine-grit (220 grit) for a polished appearance. Pay attention to corners and edges, as these areas may require extra work to eliminate any rough spots or splinters.
Ensuring Structural Integrity
Next, it’s crucial to secure the pieces together firmly. Drive wood screws through the ends of the components, ensuring they penetrate deeply into the adjoining sections. Pre-drill holes to prevent splitting, especially near the edges of the wood. I’ve found that using at least two screws per joint increases stability.
Final Assembly and Inspection
Once assembled, give everything a thorough inspection. Check for any wobbling or misalignment and make necessary adjustments. Applying a coat of wood glue to joints before securing with screws can enhance durability. Afterward, consider adding a protective finish such as varnish or paint to prolong the lifespan of the project and improve its aesthetic appeal.
